Key Specifications
- Diameter input
- Proximity switch or encoder, NPN output, up to 15kHz
- Outputs
- Two 0-20mA/4-20mA outputs and phase-angle pulse output
- Environment
- 0-50°C, relative humidity ≤85%
- Algorithm
- Roll-diameter tension control
Back to products
Tension & Winding Control

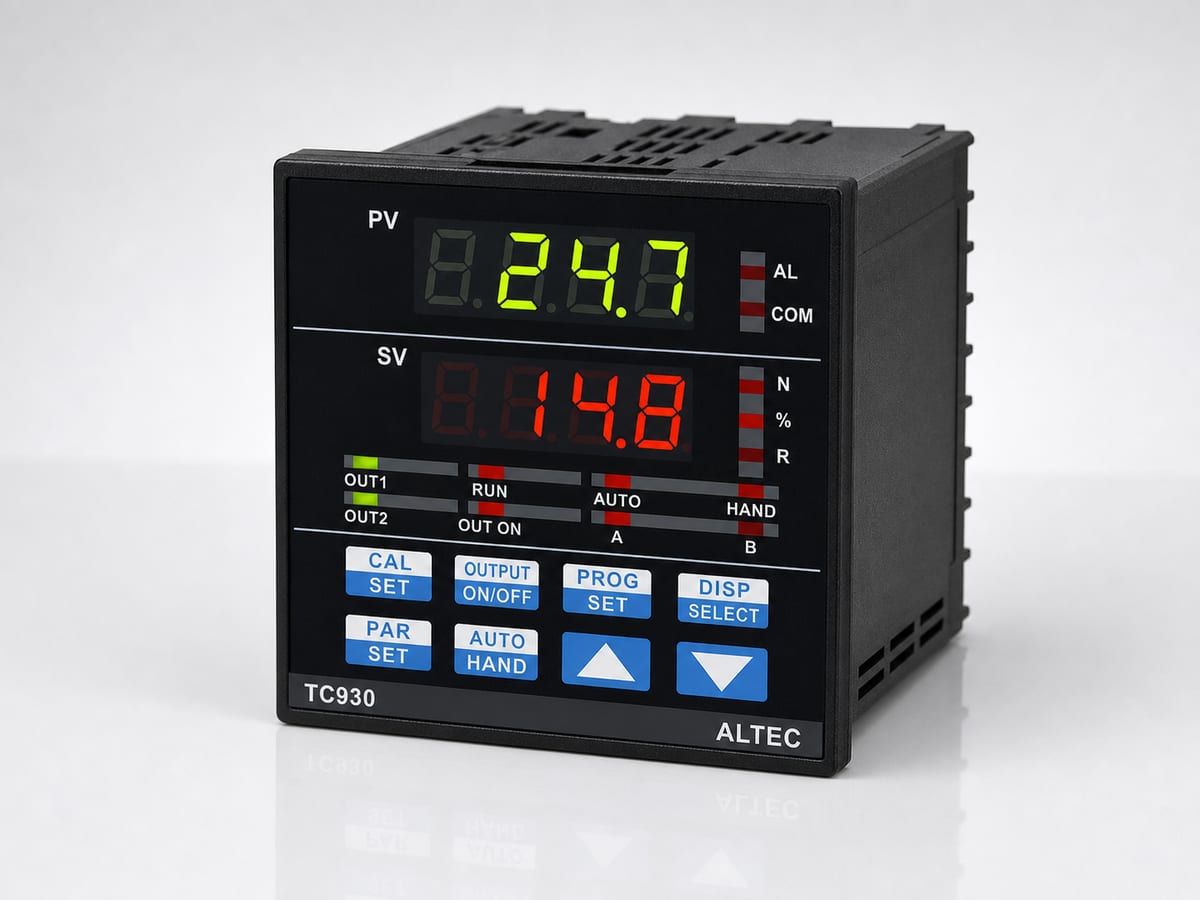

TC930
Roll-Diameter Tension Controller
The TC930 roll-diameter tension controller uses roll-diameter input to compensate tension during slitting, cutting and unwinding applications.
Technical Detail
Technical Details
The TC930 roll-diameter tension controller uses roll diameter input to compensate tension during winding, unwinding, slitting and cutting processes. It supports analog control output, optional communication and tension transmission.
Model Coding
| TC930 | - | Main output | - | Communication |
| (1) | (2) |
| A420 | 4-20mA current output |
|---|---|
| V05 | 0-5V voltage output |
| V10 | 0-10V voltage output |
| 0 | No communication |
|---|---|
| RS232 | RS232 communication interface |
| RS485 | RS485 communication interface |
| BS | Tension transmission output |
Example: TC930-A420-BS is a roll-diameter tension controller with 4-20mA control output and tension transmission.
If the output is phase-angle pulse output and the power frequency is not 50Hz, specify the frequency when ordering.

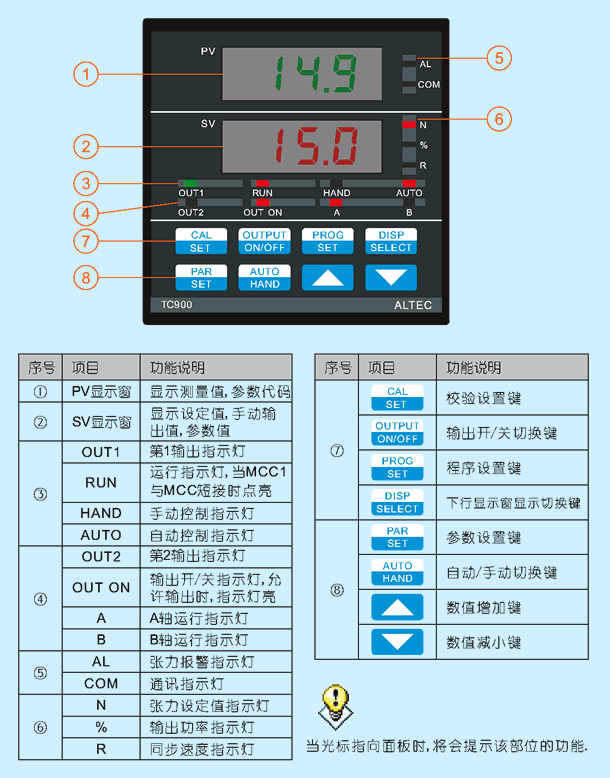

Panel Description

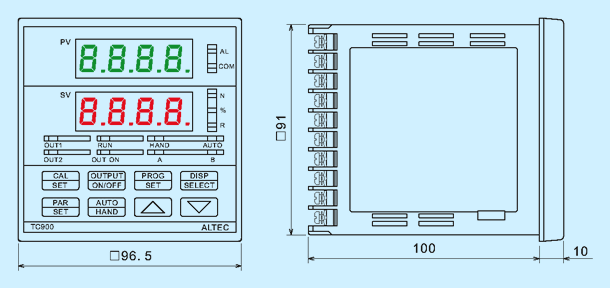

Dimensions

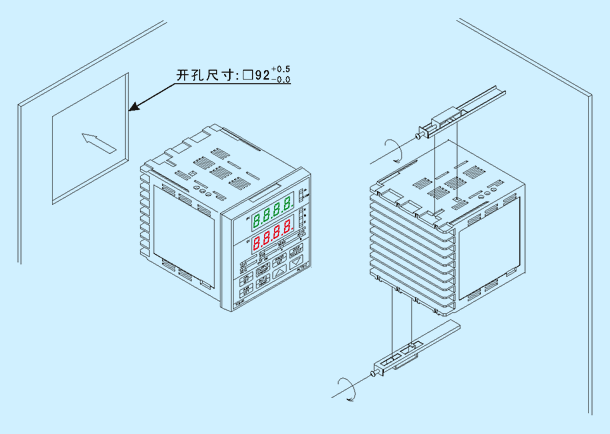

Mounting
Wiring
Specifications
| Roll diameter input | Proximity switch or encoder, NPN transistor output, maximum frequency 15kHz |
|---|---|
| Output | Two channels of 0-20mA / 4-20mA output Phase-angle pulse output |
| Alarm | Zero-tension alarm |
| Control algorithm | Roll-diameter tension control |
| Communication | RS-232, RS-485 and measured-value transmission |
| Environment | Operating temperature 0-50°C, relative humidity ≤85% |
| Power supply | 100-240VAC, 50Hz. Specify the power frequency if phase-angle pulse output is used on a non-50Hz supply. |
| Dimensions | 96(W) x 96(H) x 100(D) mm |
Documents
- TC930 Roll-Diameter Tension Controller Manual
