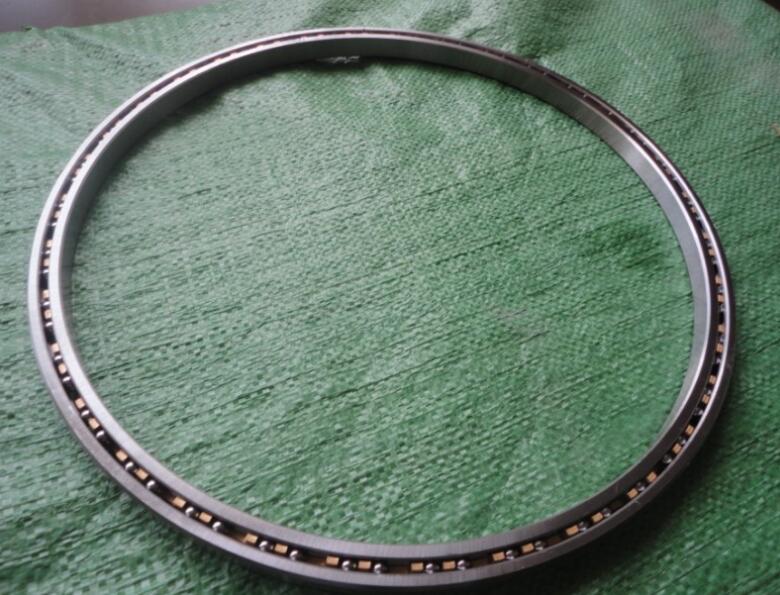

KG140XP0|KG140CP0|KG140AR0|KG140XPO|KG140CPO|KG140ARO
作者： 發布時間：2018-11-02 瀏覽次數：2993
| Dimensions in Inches | Capacities (lbs)1 | Approx. | ||||||
| part | Bore | Outside | Land | Land | Dynamic | Static2 | weight | |
| number | dia. | dia. | dia. | (lbs) | ||||
| L1 | L2 | Kaydon | Radial | |||||
| radial | ||||||||
| KG040XP0 | KG040CP0 | 4 | 6 | 4.742 | 5.258 | 6,115 | 8,210 | 3.6 |
| KG042XP0 | KG042CP0 | 4.25 | 6.25 | 4.992 | 5.508 | 6,061 | 8,210 | 3.8 |
| KG045XP0 | KG045CP0 | 4.5 | 6.5 | 5.242 | 5.758 | 6,227 | 8,760 | 4 |
| KG047XP0 | KG047CP0 | 4.75 | 6.75 | 5.492 | 6.008 | 6,487 | 9,300 | 4.1 |
| KG050XP0 | KG050CP0 | 5 | 7 | 5.742 | 6.258 | 6,691 | 9,850 | 4.3 |
| KG055XP0 | KG055CP0 | 5.5 | 7.5 | 6.242 | 6.758 | 6,850 | 10,400 | 4.7 |
| KG060XP0 | KG060CP0 | 6 | 8 | 6.742 | 7.258 | 7,241 | 11,490 | 5.1 |
| KG065XP0 | KG065CP0 | 6.5 | 8.5 | 7.242 | 7.758 | 7,393 | 12,040 | 5.4 |
| KG070XP0 | KG070CP0 | 7 | 9 | 7.742 | 8.258 | 7,764 | 13,130 | 5.8 |
| KG075XP0 | KG075CP0 | 7.5 | 9.5 | 8.242 | 8.758 | 7,911 | 13,680 | 6.1 |
| KG080XP0 | KG080CP0 | 8 | 10 | 8.742 | 9.258 | 8,265 | 14,770 | 6.5 |
| KG090XP0 | KG090CP0 | 9 | 11 | 9.742 | 10.258 | 8,743 | 16,420 | 7.2 |
| KG100XP0 | KG100CP0 | 10 | 12 | 10.742 | 11.258 | 9,204 | 18,060 | 7.9 |
| KG110XP0 | KG110CP0 | 11 | 13 | 11.742 | 12.258 | 9,648 | 19,700 | 8.6 |
| KG120XP0 | KG120CP0 | 12 | 14 | 12.742 | 13.258 | 10,074 | 21,340 | 9.3 |
| KG140XP0 | KG140CP0 | 14 | 16 | 14.742 | 15.258 | 10,886 | 24,620 | 10.8 |
| KG160XP0 | KG160CP0 | 16 | 18 | 16.742 | 17.258 | 11,648 | 27,910 | 12.3 |
| KG180XP0 | KG180CP0 | 18 | 20 | 18.742 | 19.258 | 12,367 | 31,190 | 13.7 |
| KG200XP0 | KG200CP0 | 20 | 22 | 20.742 | 21.258 | 13,044 | 34,470 | 15.8 |
| KG220XP0 | KG220CP0 | 22 | 24 | 22.742 | 23.258 | 13,685 | 37,757 | 16.8 |
| KG250XP0 | KG250CP0 | 25 | 27 | 25.742 | 26.258 | 14,591 | 42,680 | 19.5 |
| KG300XP0 | KG300CP0 | 30 | 32 | 30.742 | 31.258 | 15,963 | 50,890 | 23.3 |
| KG350XP0 | KG350CP0 | 35 | 37 | 35.742 | 36.258 | 17,195 | 59,100 | 27.1 |
| KG400XP0 | KG400CP0 | 40 | 42 | 40.742 | 41.258 | 18,307 | 67,310 | 30.8 |
